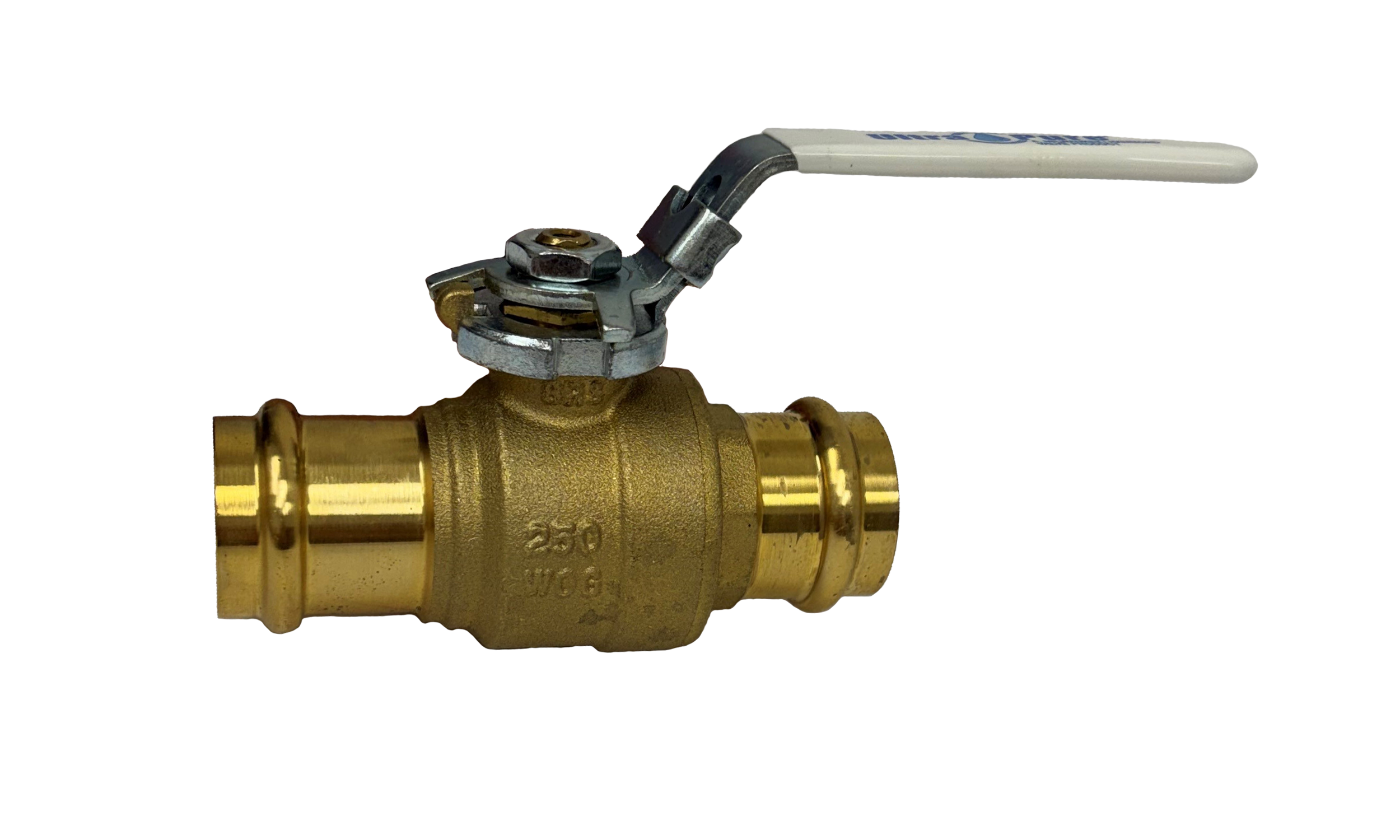

UPBA480S-LL
- Two-Piece Low Lead Brass Ball Valve, 200 psi @ 250 Degrees F, Press x Press Ends
- Low Lead Valve For Potable Water
Product Documents
IOMs
Certifications
- IAPMO tested and certified to NSF/ANSI 61 for "lead free" compliance
- IAPMO tested and certified to NSF/ANSI 372 for "lead free" compliance
Spec Sheets
Description
| Material | Lead Free Brass |
|---|---|
| ANSI/Pressure Rating | 200 psi @ 250 Degrees F |
| End Connection | Press X Press |
| Body Style | Two – Piece |
| Seat Material | RPTFE |
| Port | Full |
| Ball | Stainless Steel |
| Operator | Locking Lever Handle |
| Product Size | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
Weights, Dimensions, and Box Quantity
Size
Unit Weight
Unit Dims.
LxWxH
LxWxH
Box Quantity
Box Dims.
LxWxH
LxWxH
1/2"
0.46
5 x 2 x 1
10
6.6929 x 6.2205 x 2.4409
3/4"
0.9
6 x 3 x 1.5
6
7.7953 x 5 x 2.9528
1"
1.24
6.5 x 3.25 x 1.5
6
8.8583 x 6.378 x 3.3465
1-1/4"
1.94
7.75 x 3.75 x 2.25
4
10.7087 x 5.1181 x 4.0158
1-1/2"
2.94
8 x 4 x 2.5
4
13.1102 x 5.8661 x 4.1339
2"
5.7
10.5 x 5 x 3.5
2
15.2756 x 5.7874 x 3.3465
