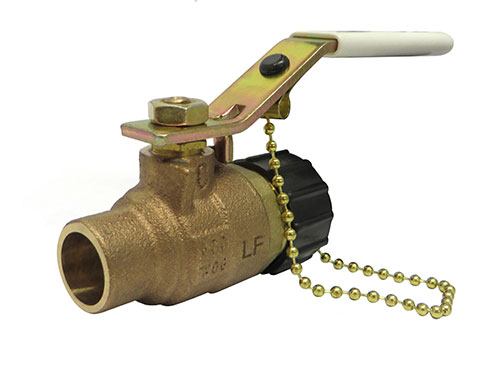

UPBA150H
- Two-Piece Low Lead Bronze Ball Valve, 600 WOG, Solder x Hose Ends
- Handles- The Insulator/MS, Oval,Locking,Locking Oval, Stainless Steel, Tee
- Memory Stop, Extension Stem or Extension Stem with Memory Stop, Chain Lever
- Low Lead Valve For Potable Water
- The Insulator TIH Handle Available- Must be Installed in the Field
Product Documents
IOMs
Certifications
- IAPMO tested and certified to NSF/ANSI 61 for "lead free" compliance
- IAPMO tested and certified to NSF/ANSI 372 for "lead free" compliance
Spec Sheets
Description
| Material | Lead Free Bronze |
|---|---|
| ANSI/Pressure Rating | 600 WOG |
| End Connection | Solder X Hose |
| Body Style | Two – Piece |
| Seat Material | RPTFE |
| Port | Full |
| Ball | Chrome Plated |
| Operator | Lever Handle |
| Product Size | 1/2", 3/4" |
Weights, Dimensions, and Box Quantity
Size
Unit Weight
Unit Dims.
LxWxH
LxWxH
Box Quantity
Box Dims.
LxWxH
LxWxH
1/2"
0.6
2.7 x 0.5 x 1.88
8
6.625 x 5.1875 x 2.8125
3/4"
1.1
2.9 x 0.76 x 2.14
6
7.5 x 5.5625 x 3.25
