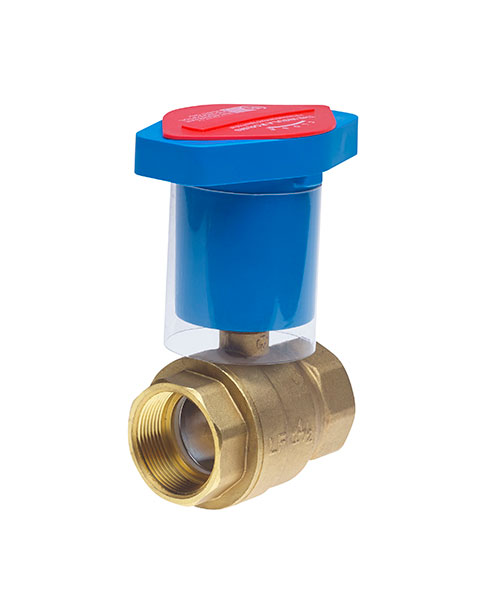

UPBA-475B-TIH
- Two-Piece Low Lead Brass Ball Valve, 600 WOG, Threaded Ends
- Low Lead Valve For Potable Water
- CSA/UL/FM Listed
- Combination of Buna “O-Ring” and TFE Packing Requires Little or No Maintenance
- Adjustable Gland Follower
- 400 WOG (2 1/2″ – 3″)
Product Documents
IOMs
Certifications
- IAPMO tested and certified to NSF/ANSI 61 for "lead free" compliance
- IAPMO tested and certified to NSF/ANSI 372 for "lead free" compliance
Spec Sheets
3D CAD Files
Description
| Material | Lead Free Brass |
|---|---|
| ANSI/Pressure Rating | 600 WOG |
| End Connection | Threaded |
| Body Style | Two – Piece |
| Seat Material | PTFE |
| Port | Full |
| Ball | Chrome Plated |
| Operator | Insulator/MS (Insulated Handle with Memory Stop) |
| Product Size | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
Weights, Dimensions, and Box Quantity
Size
Unit Weight
Unit Dims.
LxWxH
LxWxH
Box Quantity
Box Dims.
LxWxH
LxWxH
1/4"
1.13
1.87 x 0.39 x 1.42
1
3/8"
1.13
1.87 x 0.39 x 1.42
1
1/2"
1.22
2.25 x 0.51 x 1.46
1
3/4"
1.38
2.62 x 0.76 x 1.93
1
1"
1.96
3.06 x 1 x 2.1
1
1-1/4"
2.91
3.5 x 1.26 x 2.33
1
1-1/2"
3.71
3.75 x 1.5 x 2.52
1
2"
5.08
4.38 x 2 x 2.96
1
