UP105

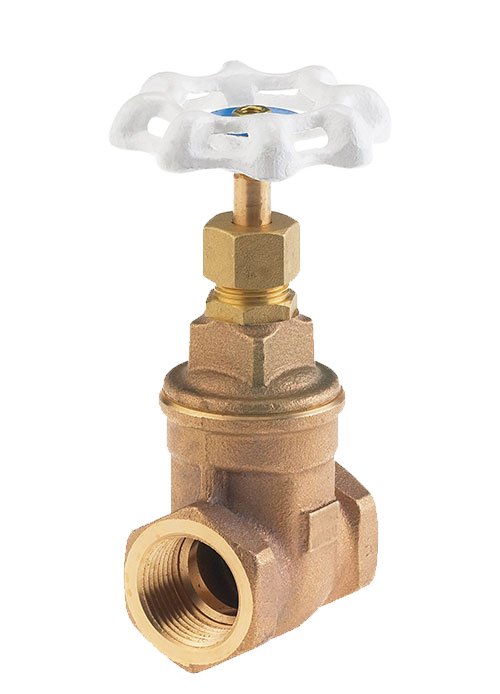

  • Low Lead Bronze Gate Valve, 300 WOG, Threaded Ends
  • Conforms to MSS SP-80 , Type 1
  • Low Lead Valve For Potable Water
  • Gland Packed
  • Non-Shock

Product Documents

IOMs

Certifications

Spec Sheets

3D CAD Files

alterna

Description

Material

Lead Free Bronze
ANSI/Pressure Rating

300 WOG
End Connection

Threaded
Stem Type

Non-Rising
Bonnet Type

Threaded
Seat Material

Bronze
Disc Material

Solid Wedge
Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
Valve Type

Gate Valve
Add to quote
Categories: ,

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
0.78
1.75 x 0.25 x 3.63
10
9 x 9 x 2.125
3/8"
0.82
1.81 x 0.375 x 3.63
10
9 x 9 x 2.125
1/2"
0.8
2 x 0.5 x 3.63
10
10.5 x 6 x 3.25
3/4"
1.56
2.13 x 0.75 x 4.38
6
10.5 x 6 x 3.25
1"
2.24
2.56 x 1 x 5
6
10.5 x 8 x 3
1-1/4"
3.1
2.78 x 1.25 x 5
4
9.5 x 7.5 x 3
1-1/2"
3.9
2.81 x 1.5 x 6.34
4
11 x 8.25 x 3
2"
6.42
3.31 x 2 x 7.44
2
