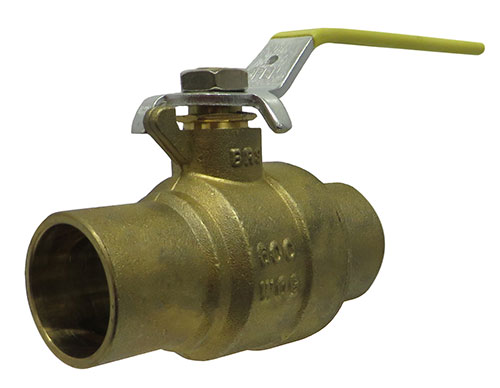

PM11LF

  • Two-Piece Low Lead Brass Ball Valve, 600 WOG, Solder Ends
  • Handles- Oval,Locking,Locking Oval, Stainless Steel, Tee
  • Memory Stop, Extension Stem or Extension Stem with Memory Stop, Chain Lever
  • Low Lead Valve For Potable Water
  • Combination of Buna “O-Ring” and TFE Packing Requires Little or No Maintenance
  • 600 WOG (1/2″ – 2″)
  • 400 WOG (2 1/2″ – 3″)
  • TIH Handle Available- Must be Installed in the Field

Product Documents

IOMs

Certifications

Spec Sheets

alterna

Description

Material

Lead Free Brass
ANSI/Pressure Rating

600 WOG
End Connection

Solder
Body Style

Two – Piece
Seat Material

RPTFE
Port

Full
Ball

Chrome Plated
Operator

Lever Handle
Product Size

1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/2"
0.44
2.28 x 0.5 x 1.46
10
6.1811 x 4.8819 x 2.4409
3/4"
0.78
3.1 x 0.76 x 1.93
6
6.6142 x 5.1969 x 2.9528
1"
1.1
3.56 x 1 x 2.1
6
7.4409 x 6.4173 x 3.3465
1-1/4"
1.72
4.13 x 1.26 x 2.33
4
8.4252 x 5.0787 x 4.0158
1-1/2"
2.52
4.64 x 1.5 x 2.52
4
9.3307 x 5.8661 x 4.0158
2"
5.1
5.75 x 2 x 2.96
2
11.5354 x 5.748 x 3.1496
