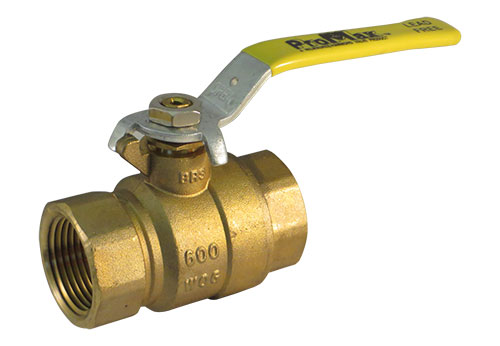

PM01LF

  • Two-Piece Low Lead Brass Ball Valve, 600 WOG, Threaded Ends
  • Low Lead Valve For Potable Water

Product Documents

IOMs

Certifications

Spec Sheets

alterna

Description

Material

Lead Free Brass
ANSI/Pressure Rating

600 WOG
End Connection

Threaded
Body Style

Two – Piece
Seat Material

RPTFE
Port

Full
Ball

Chrome Plated
Operator

Lever Handle
Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
0.32
1.87 x 0.39 x 1.42
10
5.0787 x 4.6457 x 2.1654
3/8"
0.32
1.87 x 0.39 x 1.42
10
5.0787 x 4.6457 x 2.1654
1/2"
0.46
2.25 x 0.51 x 1.46
10
6.1811 x 4.8819 x 2.4409
3/4"
0.84
2.62 x 0.76 x 1.93
6
6.1811 x 5.1969 x 2.9528
1"
1.2
3.75 x 1.5 x 2.52
6
6.1811 x 6.4567 x 3.5039
1-1/4"
1.84
3.5 x 1.26 x 2.33
4
7.6378 x 5.0787 x 4.2126
1-1/2"
2.6
2.96 x 1.31 x 2.84
4
8.3465 x 5.8661 x 4.5669
2"
5.38
4.38 x 2 x 2.96
2
10.315 x 5.6693 x 3.5433
