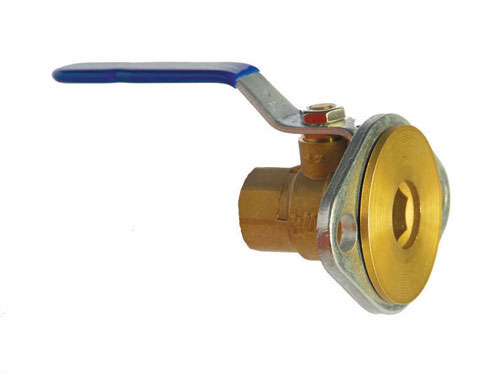

BA-500

  • Two-Piece Brass Ball Valve, 600 WOG, Circulator Flange x Threaded Ends
  • Not Intended for Use in Potable Water
  • Circulator-Flange Ball Valve

Product Documents

IOMs

Spec Sheets

Description

Material

Brass
ANSI/Pressure Rating

600 WOG
End Connection

Circulator Flange X Threaded
Body Style

Two – Piece
Seat Material

RPTFE
Port

Full
Ball

Chrome Plated
Operator

Lever Handle
Product Size

3/4", 1", 1-1/4"
Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
3/4"
3.9
1.24 x 3 x 0
12
6.4961 x 5.315 x 3.1496
1"
4.18
1.32 x 3.31 x 3.29
12
6.4961 x 5.315 x 3.1496
1 1/4"
5
1.32 x 3.49 x 3.29
12
7.0866 x 5.315 x 3.1496
