BA-490S

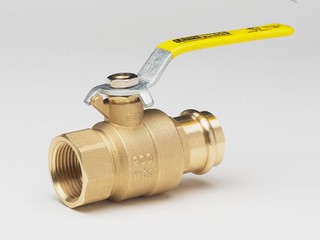

  • Two-Piece Brass Ball Valve, 200 psi @ 250 Degrees F, Press x Threaded Ends
  • Handles- The Inulator/MS, Oval,Locking,Locking Oval, Stainless Steel, Tee
  • Not Intended for Use in Potable Water
  • Locking Handle is Standard on 2 1/2″ and 3″

Product Documents

IOMs

Spec Sheets

3D CAD Files

Product Videos

Description

Material

Brass
ANSI/Pressure Rating

200 psi @ 250 Degrees F
End Connection

Press X Threaded
Body Style

Two – Piece
Seat Material

RPTFE
Port

Full
Ball

Stainless Steel
Operator

Lever Handle
Product Size

1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
Add to quote
Categories: , ,

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/2"
0.44
1.14 x 0.51 x 1.46
10
6.2205 x 5.748 x 2.4409
3/4"
0.84
1.31 x 0.76 x 1.46
6
6.9291 x 5.1969 x 2.9528
1"
1.2
1.53 x 0.98 x 2.1
6
7.7165 x 6.1417 x 3.3465
1 1/4"
1.88
1.71 x 1.26 x 2.33
4
9.3307 x 5.1575 x 4.0158
1 1/2"
2.8
1.88 x 1.5 x 2.52
4
10.9055 x 5.9449 x 4.1339
2"
5.54
2.19 x 2 x 2.96
2
12.5984 x 5.748 x 3.3465
