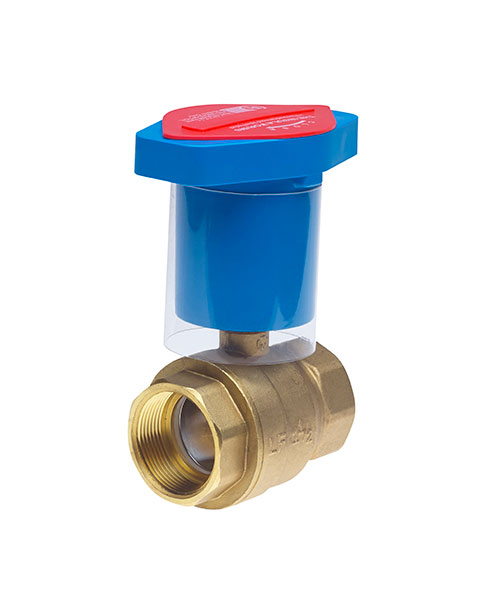

BA-475B-TIH

  • Two-Piece Brass Ball Valve, 600 WOG, Threaded Ends
  • Not Intended for Use in Potable Water
  • Adjustable Threaded Gland Follower
  • CSA/UL/FM Listed
  • Combination of Buna “O-Ring” and TFE Packing Requires Little or No Maintenance

Product Documents

IOMs

Spec Sheets

3D CAD Files

Product Videos

Description

Material

Brass
ANSI/Pressure Rating

600 WOG
End Connection

Threaded
Body Style

Two – Piece
Seat Material

RPTFE
Port

Full
Ball

Chrome Plated
Operator

Insulator/MS (Insulated Handle with Memory Stop)
Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
1.13
1.87 x 0.89 x 1.42
1
3/8"
1.1
1.87 x 0.89 x 1.42
1
1/2"
1
2.25 x 1.01 x 1.46
1
3/4"
1.5
1.31 x 1.26 x 4.35
1
1"
1.76
3.06 x 1.5 x 2.1
1
1 1/4"
2.18
3.5 x 1.76 x 2.33
1
1 1/2"
2.88
3.75 x 2 x 0
1
2"
5.1
4.38 x 2.5 x 2.96
1
