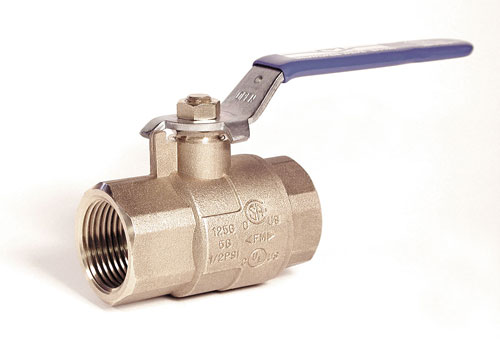

BA-475B-MS

  • Two-Piece Brass Ball Valve, 600 WOG, Threaded Ends
  • Not Intended for Use in Potable Water
  • Memory Stop
  • Adjustable Threaded Gland Follower
  • CSA/UL/FM Listed
  • Combination of Buna “O-Ring” and TFE Packing Requires Little or No Maintenance

Product Documents

IOMs

Spec Sheets

Product Videos

Description

Material

Brass
ANSI/Pressure Rating

600 WOG
End Connection

Threaded
Body Style

Two – Piece
Seat Material

RPTFE
Port

Full
Ball

Chrome Plated
Operator

Lever Handle with Memory Stop
Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"
Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
0.32
1.87 x 0.89 x 1.42
10
3/8"
0.33
1.87 x 0.89 x 1.42
10
7.5 x 5.5625 x 3.25
1/2"
0.455
2.25 x 1.01 x 1.46
10
3/4"
0.855
1.31 x 1.26 x 4.35
6
6.625 x 5.1875 x 2.8125
1"
1.215
3.06 x 1.5 x 2.1
6
1 1/4"
1.69
3.5 x 1.76 x 2.33
4
9.25 x 6.75 x 3.875
1 1/2"
2.36
3.75 x 2 x 2.52
4
9.25 x 6.75 x 3.875
2"
4.55
4.38 x 2.5 x 2.96
2
16 x 8.6875 x 4.9375
2 1/2"
8.35
5.16 x 2.98 x 3.94
1
3"
11.86
6 x 3.45 x 4.37
1
