BA-475B-LL

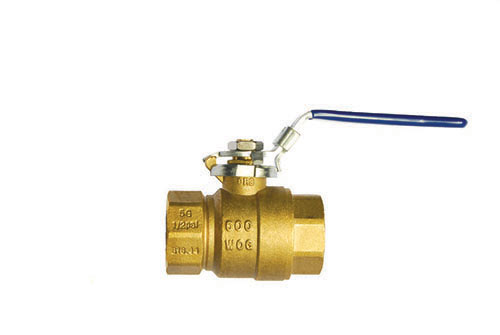

  • Two-Piece Brass Ball Valve, 600 WOG, Threaded Ends
  • Not Intended for Use in Potable Water
  • Adjustable Threaded Gland Follower
  • CSA/UL/FM Listed
  • Combination of Buna “O-Ring” and TFE Packing Requires Little or No Maintenance

Product Documents

IOMs

Spec Sheets

Product Videos

Description

Material

Brass
ANSI/Pressure Rating

600 WOG
End Connection

Threaded
Body Style

Two – Piece
Seat Material

RPTFE
Port

Full
Ball

Chrome Plated
Operator

Locking Lever Handle
Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"
Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
0.36
1.87 x 0.89 x 1.42
10
5.0787 x 4.6457 x 2.1654
3/8"
0.34
1.87 x 0.89 x 1.42
10
5.0787 x 4.6457 x 2.1654
1/2"
0.48
2.25 x 1.01 x 1.46
10
6.1811 x 4.8819 x 2.4409
3/4"
0.88
1.31 x 1.26 x 4.35
6
6.1811 x 5.1969 x 2.9528
1"
1.26
3.06 x 1.5 x 2.1
6
6.1811 x 6.4567 x 3.5039
1 1/4"
1.82
3.5 x 1.76 x 2.33
4
7.6378 x 5.0787 x 4.2126
1 1/2"
2.46
3.75 x 2 x 2.52
4
8.3465 x 5.8661 x 4.5669
2"
4.92
4.38 x 2.5 x 2.96
2
10.315 x 5.6693 x 3.5433
2 1/2"
8.64
5.16 x 2.98 x 3.94
1
10.8268 x 6.4961 x 4.3307
3"
11.8
6 x 3.45 x 4.37
1
11.4173 x 6.8898 x 5
