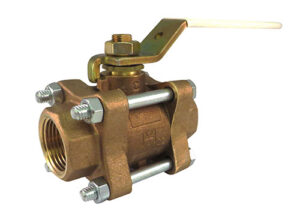

BA-300S

  • Three-Piece 150 SWP – 600 WOG Ball Valve, Threaded Ends
  • Handles- The Insulator/MS,Oval,Locking,Locking Oval, Stainless Steel, Tee
  • Memory Stop, Extension Stem or Extension Stem with Memory Stop, Chain Lever
  • Not Intended for Use in Potable Water
  • 3″ is Standard Port
  • Locking Handle is Standard on 2 1/2″ and 3″

Product Documents

IOMs

Spec Sheets

3D CAD Files

Product Videos

Description

Material

Bronze
ANSI/Pressure Rating

600 WOG – 150 SWP
End Connection

Threaded
Body Style

Three-Piece
Seat Material

RPTFE
Port

Full
Ball

Stainless Steel
Operator

Lever Handle
Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"
Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
1.16
3.03 x 0.5 x 1.65
10
10.25 x 7.375 x 4.0625
3/8"
1.125
3.03 x 0.5 x 1.65
10
10.25 x 7.375 x 4.0625
1/2"
1.09
3.03 x 0.5 x 1.65
10
10.25 x 7.375 x 4.0625
3/4"
2.255
3.56 x 0.75 x 2.24
6
10.25 x 7.375 x 4.0625
1"
3.3
3.82 x 1 x 2.65
6
10.25 x 7.375 x 4.0625
1-1/4"
5.375
4.86 x 1.25 x 2.86
2
10.3125 x 4.875 x 3
1-1/2"
6.75
5.06 x 1 x 3.03
2
10.3125 x 4.875 x 3
2"
10.785
6 x 2 x 3.26
1
10.25 x 7.375 x 4.0625
2 1/2"
29.136
8 x 5 x 4.09
1
11.3125 x 11 x 6.875
3"
26.04
8 x 5 x 4.09
1
11.3125 x 11 x 6.875
