BA-300

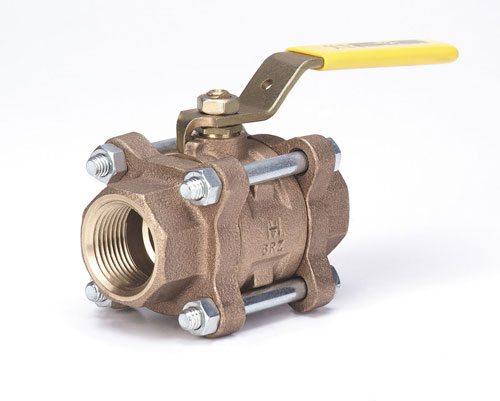

- Three-Piece Bronze Ball Valve, 600 WOG, Threaded Ends
- Handles- The Insulator/MS,Oval,Locking,Locking Oval, Stainless Steel, Tee
- Memory Stop, Extension Stem or Extension Stem with Memory Stop, Chain Lever
- Not Intended for Use in Potable Water
- 3″ is Standard Port
- Locking Handle is Standard on 2 1/2″ and 3″
Description
| Material | Bronze |
|---|---|
| ANSI/Pressure Rating | 600 WOG – 150 SWP |
| End Connection | Threaded |
| Body Style | Three-Piece |
| Seat Material | RPTFE |
| Port | Full |
| Ball | Chrome Plated |
| Operator | Lever Handle |
| Product Size | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" |
Weights, Dimensions, and Box Quantity
Size
Unit Weight
Unit Dims.
LxWxH
LxWxH
Box Quantity
Box Dims.
LxWxH
LxWxH
1/4"
1.175
3.03 x 0.5 x 1.65
10
10.25 x 7.375 x 4.0625
3/8"
1.115
3.03 x 0.5 x 1.65
10
10.25 x 7.375 x 4.0625
1/2"
1.075
3.03 x 0.5 x 1.65
10
10.25 x 7.375 x 4.0625
3/4"
2.255
3.56 x 0.75 x 2.24
6
10.25 x 7.375 x 4.0625
1"
3.275
3.82 x 1 x 2.65
6
10.25 x 7.375 x 4.0625
1-1/4"
5.322
4.86 x 1.25 x 2.86
2
10.3125 x 4.875 x 3
1-1/2"
6.56
5.06 x 1 x 3.03
2
10.3125 x 4.875 x 3
2"
10.39
6 x 2 x 3.26
1
10.25 x 7.375 x 4.0625
2 1/2"
28.996
6.84 x 2.5 x 4.09
1
11.3125 x 11 x 6.875
3"
26.6
6.84 x 2.5 x 4.09
1
11.3125 x 11 x 6.875
