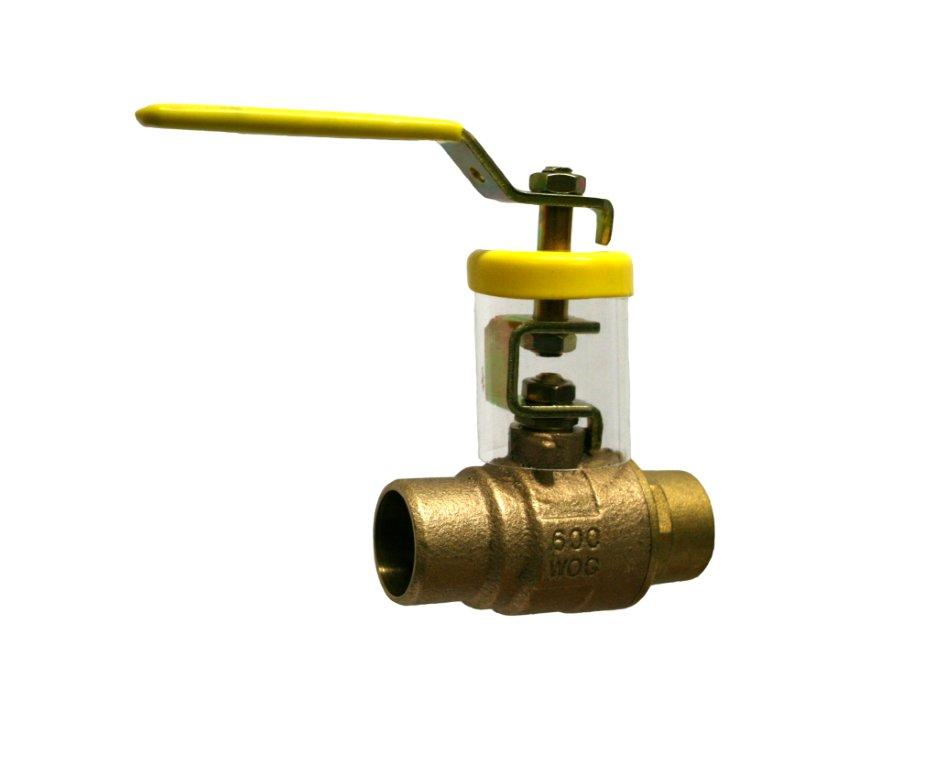

BA-150S-XH
- Two-Piece Bronze Ball Valve, 600 WOG, Solder Ends
- Not Intended for Use in Potable Water
Description
| Material | Bronze |
|---|---|
| ANSI/Pressure Rating | 600 WOG |
| End Connection | Solder |
| Body Style | Two – Piece |
| Seat Material | RPTFE |
| Port | Standard |
| Ball | Stainless Steel |
| Operator | Extension Stem |
| Product Size | 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" |
Weights, Dimensions, and Box Quantity
Size
Unit Weight
Unit Dims.
LxWxH
LxWxH
Box Quantity
Box Dims.
LxWxH
LxWxH
3/8"
0.6
2.1 x 0.38 x 1.8
20
20.875 x 10.1875 x 2.25
1/2"
0.695
2.7 x 0.5 x 1.88
22
20.875 x 10.1875 x 2.25
3/4"
1.16
2.9 x 0.76 x 2.14
16
20.875 x 10.1875 x 2.25
1"
1.545
3.71 x 0.88 x 2.29
12
17 x 13.1875 x 2.625
1 1/4"
2.535
4.54 x 1.06 x 2.67
8
17 x 13.1875 x 2.625
1 1/2"
3.81
5 x 1.31 x 2.85
8
17 x 13.1875 x 2.625
2"
5.53
6.25 x 1.56 x 3.02
5
19.4375 x 9 x 3.875
2 1/2"
10.54
7.34 x 2 x 5.72
1
16 x 8.6875 x 4.9375
3"
16.65
8.16 x 2.31 x 6.13
1
13.565 x 8.9375 x 4.8125
