BA-150

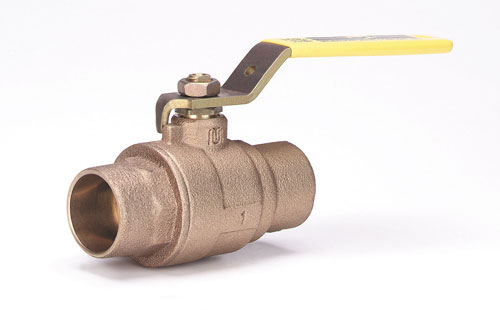

- Two-Piece Bronze Ball Valve, 600 WOG, Solder Ends
- Handles- The Insulator/MS,Oval,Locking,Locking Oval, Stainless Steel, Tee
- Memory Stop, Extension Stem or Extension Stem with Memory Stop, Chain Lever
- Not Intended for Use in Potable Water
- The Insulator TIH Handle Available- Must be Installed in the Field
Description
| Material | Bronze |
|---|---|
| ANSI/Pressure Rating | 600 WOG |
| End Connection | Solder |
| Body Style | Two – Piece |
| Seat Material | RPTFE |
| Port | Standard |
| Ball | Chrome Plated |
| Operator | Lever Handle |
| Product Size | 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" |
Weights, Dimensions, and Box Quantity
Size
Unit Weight
Unit Dims.
LxWxH
LxWxH
Box Quantity
Box Dims.
LxWxH
LxWxH
3/8"
0.465
2.1 x 0.88 x 1.8
10
6.625 x 5.1875 x 2.8125
1/2"
0.54
2.39 x 1 x 1.89
10
6.625 x 5.1875 x 2.8125
3/4"
0.97
3.05 x 1.26 x 2.13
6
6.625 x 5.1875 x 2.8125
1"
1.375
3.17 x 1.38 x 2.29
6
7.5 x 5.5625 x 3.25
1 1/4"
2.55
4.54 x 1.56 x 2.67
6
9.25 x 6.75 x 3.875
1 1/2"
3.425
5 x 1.81 x 2.85
4
10.625 x 6.75 x 3.875
2"
5.225
6.25 x 2.06 x 3.02
2
10.625 x 6.75 x 3.875
2 1/2"
9.865
7.34 x 2.5 x 3.47
1
3"
15.83
8.16 x 2.81 x 3.88
1
5.625 x 4.875 x 8.5
