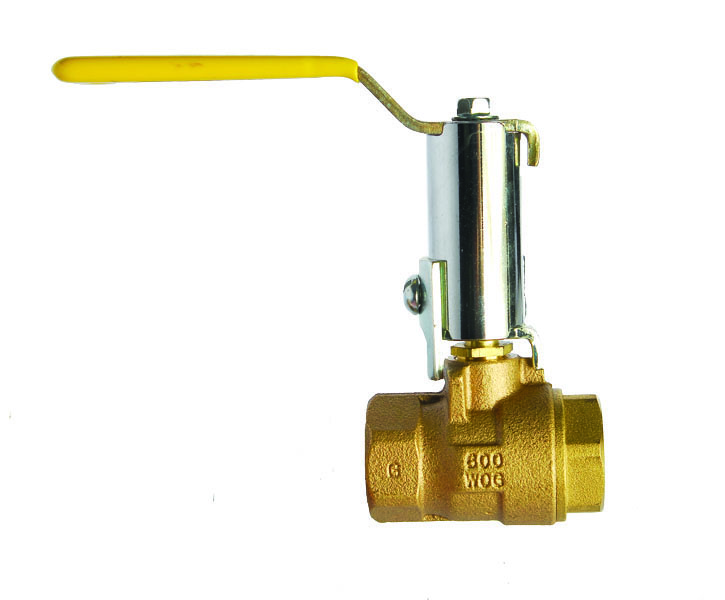

BA-100S-XM
- Two-Piece Bronze Ball Valve, 600 WOG – 150 SWP, Threaded Ends
- Not Intended for Use in Potable Water
Description
| Material | Bronze |
|---|---|
| ANSI/Pressure Rating | 600 WOG – 150 SWP |
| End Connection | Threaded |
| Body Style | Two – Piece |
| Seat Material | RPTFE |
| Port | Standard |
| Ball | Stainless Steel |
| Operator | Extension Handle with Memory Stop |
| Product Size | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" |
Weights, Dimensions, and Box Quantity
Size
Unit Weight
Unit Dims.
LxWxH
LxWxH
Box Quantity
Box Dims.
LxWxH
LxWxH
1/4"
0.64
1.86 x 0.38 x 4.03
24
20.875 x 10.1875 x 2.25
3/8"
0.6
1.86 x 0.38 x 4.06
24
20.875 x 10.1875 x 2.25
1/2"
0.895
2.19 x 0.5 x 4.16
22
20.875 x 10.1875 x 2.25
3/4"
1.37
3.17 x 0.88 x 4.33
18
20.875 x 10.1875 x 2.25
1"
1.82
3.17 x 0.88 x 4.5
15
20.875 x 10.1875 x 2.25
1 1/4"
2.881
3.5 x 1.31 x 4.91
6
16 x 11.3125 x 3.6875
1 1/2"
3.855
3.96 x 1.31 x 5.09
4
16 x 11.3125 x 3.6875
2"
4.6
4.3 x 1.56 x 5.25
4
10.625 x 6.75 x 3.875
2 1/2"
9.98
5.56 x 2 x 5.72
4
3"
16.01
6.2 x 2.31 x 6.15
1
