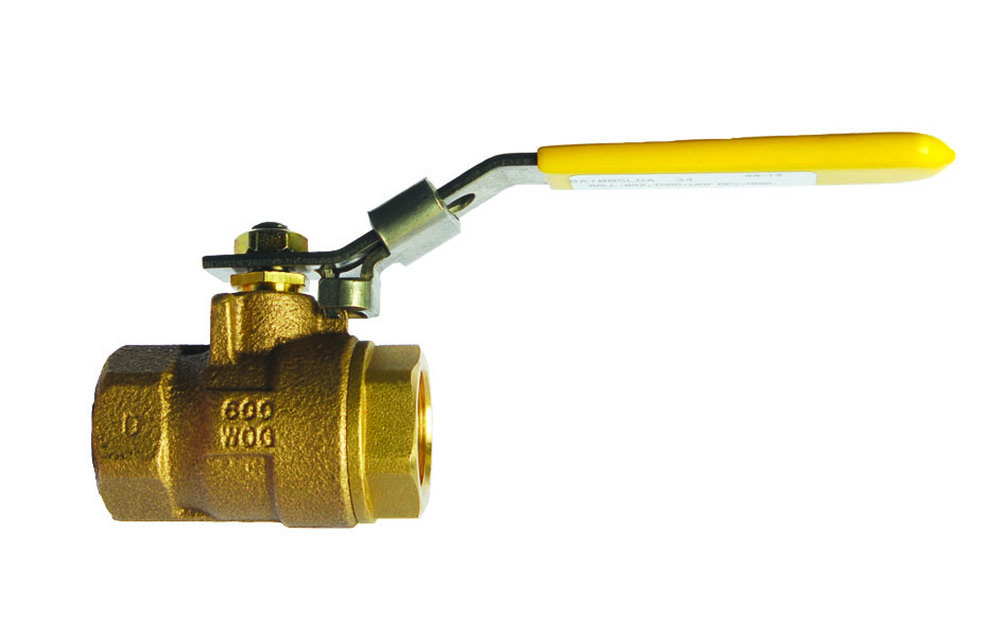

BA-100S-LD
- Two-Piece Bronze Ball Valve, 600 WOG – 150 SWP, Threaded Ends
- Not Intended for Use in Potable Water
Description
| Material | Bronze |
|---|---|
| ANSI/Pressure Rating | 600 WOG – 150 SWP |
| End Connection | Threaded |
| Body Style | Two – Piece |
| Seat Material | RPTFE |
| Port | Standard |
| Ball | Stainless Steel |
| Operator | Locking Lever Handle |
| Product Size | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" |
Weights, Dimensions, and Box Quantity
Size
Unit Weight
Unit Dims.
LxWxH
LxWxH
Box Quantity
Box Dims.
LxWxH
LxWxH
1/4"
0.58
1.86 x 0.38 x 1.78
10
7.5 x 5.5625 x 3.25
3/8"
0.545
1.86 x 0.38 x 1.81
10
7.5 x 5.5625 x 3.25
1/2"
0.635
2.19 x 0.5 x 1.91
8
6.625 x 5.1875 x 2.8125
3/4"
1.03
2.64 x 0.76 x 2.08
6
7.5 x 5.5625 x 3.25
1"
1.49
3.17 x 0.88 x 2.25
6
7.5 x 5.5625 x 3.25
1 1/4"
2.48
3.5 x 1.06 x 2.66
6
9.25 x 6.75 x 3.875
1 1/2"
3.435
3.96 x 1.31 x 2.84
4
9.25 x 6.75 x 3.875
2"
4.4
4.3 x 1.56 x 3
4
10.625 x 6.75 x 3.875
2 1/2"
9.6
5.56 x 2.5 x 3.47
1
8 x 6 x 5
3"
9.275
6.2 x 2.81 x 3.9
1
5 x 5.375 x 6.25
