BA-100-XLD

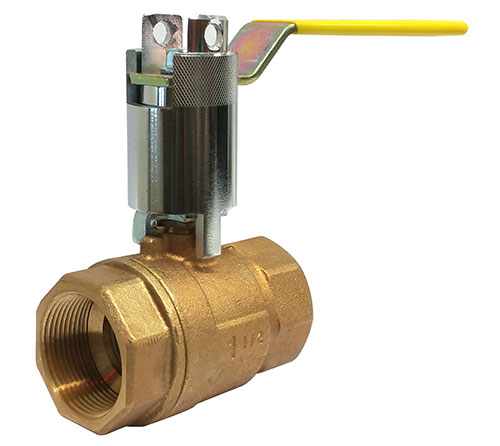

- Two-Piece Bronze Ball Valve, 600 WOG – 150 SWP, Threaded Ends
- Not Intended for Use in Potable Water
Description
| Material | Bronze |
|---|---|
| ANSI/Pressure Rating | 600 WOG – 150 SWP |
| End Connection | Threaded |
| Body Style | Two – Piece |
| Seat Material | RPTFE |
| Port | Standard |
| Ball | Chrome Plated |
| Operator | Extended Locking Handle |
| Product Size | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" |
Weights, Dimensions, and Box Quantity
Size
Unit Weight
Unit Dims.
LxWxH
LxWxH
Box Quantity
Box Dims.
LxWxH
LxWxH
1/2"
1.19
2.1 x 0.51 x 3.91
20
20.875 x 10.1875 x 2.25
3/4"
1.6
2.64 x 1.26 x 4.08
16
20.875 x 10.1875 x 2.25
1"
2.05
3.17 x 1.38 x 4.25
12
20.875 x 10.1875 x 2.25
1 1/4"
3.555
3.5 x 1.56 x 3.91
10
17 x 13.1875 x 2.625
1 1/2"
4.45
3.96 x 1.81 x 4.09
8
9.25 x 6.75 x 3.875
2"
5.415
4.3 x 2.06 x 4.25
5
