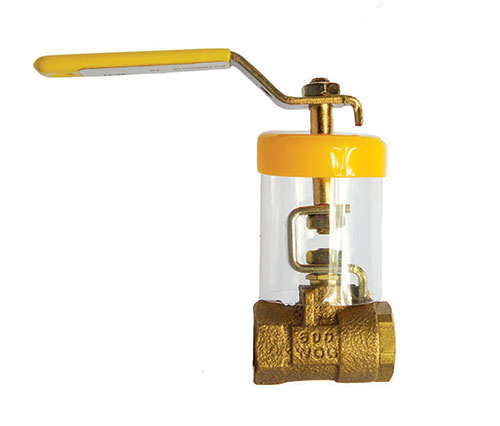

BA-100-XH
- Two-Piece Bronze Ball Valve, 600 WOG – 150 SWP, Threaded Ends
- Not Intended for Use in Potable Water
Description
| Material | Bronze |
|---|---|
| ANSI/Pressure Rating | 600 WOG – 150 SWP |
| End Connection | Threaded |
| Body Style | Two – Piece |
| Seat Material | RPTFE |
| Port | Standard |
| Ball | Chrome Plated |
| Operator | Extension Stem |
| Product Size | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" |
Weights, Dimensions, and Box Quantity
Size
Unit Weight
Unit Dims.
LxWxH
LxWxH
Box Quantity
Box Dims.
LxWxH
LxWxH
1/4"
0.64
1.86 x 0.88 x 3.03
24
20.875 x 10.1875 x 2.25
3/8"
0.63
1.86 x 0.88 x 2.06
24
20.875 x 10.1875 x 2.25
1/2"
0.69
2.19 x 1 x 3.24
22
20.875 x 10.1875 x 2.25
3/4"
1.145
2.64 x 1.26 x 3.33
18
20.875 x 10.1875 x 2.25
1"
1.61
3.17 x 1.38 x 3.5
12
20.875 x 10.1875 x 2.25
1 1/4"
2.745
3.5 x 1.56 x 3.91
12
17 x 13.1875 x 2.625
1 1/2"
3.665
3.96 x 1.81 x 4.09
10
17 x 13.1875 x 2.625
2"
4.695
4.3 x 2.06 x 4.25
5
16 x 11.3125 x 3.6875
2 1/2"
9.815
5.56 x 2.5 x 3.47
5
19.4375 x 9 x 3.875
3"
15.785
6.2 x 2.81 x 3.9
1
