BA-100-TH

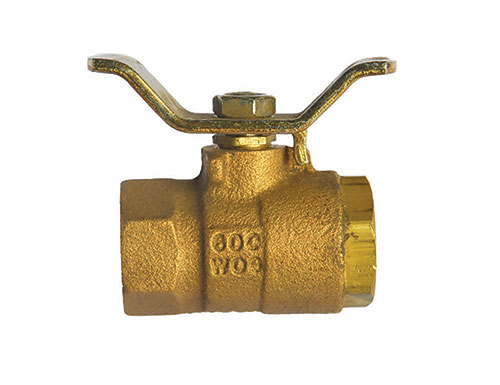

- Two-Piece Bronze Ball Valve, 600 WOG – 150 SWP, Threaded Ends
- Not Intended for Use in Potable Water
Description
| Material | Bronze |
|---|---|
| ANSI/Pressure Rating | 600 WOG – 150 SWP |
| End Connection | Threaded |
| Body Style | Two – Piece |
| Seat Material | RPTFE |
| Port | Standard |
| Ball | Chrome Plated |
| Operator | Tee Handle |
| Product Size | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2" |
Weights, Dimensions, and Box Quantity
Size
Unit Weight
Unit Dims.
LxWxH
LxWxH
Box Quantity
Box Dims.
LxWxH
LxWxH
1/4"
0.55
1.86 x 0.88 x 1.78
10
6.625 x 5.1875 x 2.8125
3/8"
0.5
1.86 x 0.88 x 1.81
10
6.625 x 5.1875 x 2.8125
1/2"
0.55
2.19 x 1 x 1.91
10
6.625 x 5.1875 x 2.8125
3/4"
0.93
2.64 x 1.26 x 2.08
6
6.625 x 5.1875 x 2.8125
1"
1.4
3.17 x 1.38 x 2.25
6
7.5 x 5.5625 x 3.25
1 1/4"
2.25
3.5 x 1.56 x 2.66
6
9.25 x 6.75 x 3.875
1 1/2"
3.14
3.96 x 1.81 x 2.84
6
9.25 x 6.75 x 3.875
2"
4.15
4.3 x 2.06 x 3
4
