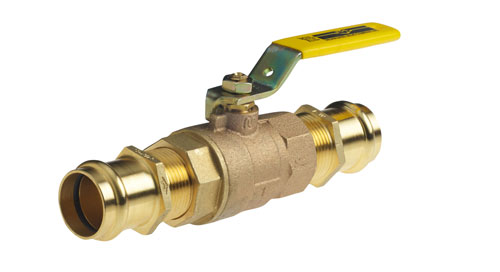

BA-100 P2

  • Two-Piece Bronze Ball Valve, 200 psi @ 250 Degrees F, Press x Press Ends
  • Handles- The Insulator/MS,Oval,Locking,Locking Oval, Stainless Steel, Tee
  • Memory Stop, Extension Stem or Extension Stem with Memory Stop, Chain Lever
  • Not Intended for Use in Potable Water

Product Documents

IOMs

Spec Sheets

3D CAD Files

Product Videos

Description

Material

Bronze
ANSI/Pressure Rating

200 psi @ 250 Degrees F
End Connection

Press X Press
Body Style

Two – Piece
Seat Material

RPTFE
Port

Standard
Ball

Chrome Plated
Operator

Lever Handle
Product Size

1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"
Add to quote
Categories: ,

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/2"
0.84
5.19 x 0 x 1.91
10
3/4"
0.99
6.17 x 0 x 2.32
8
1"
2.08
7.32 x 0 x 2.68
6
1 1/4"
2.41
7.84 x 0 x 2.82
4
1 1/2"
3.31
8.76 x 0 x 3
3
2"
4.315
11.1 x 0 x 3.36
2
2 1/2"
11.625
12.02 x 0 x 3.47
1
3"
18.81
13.94 x 2.81 x 3.9
1
