515

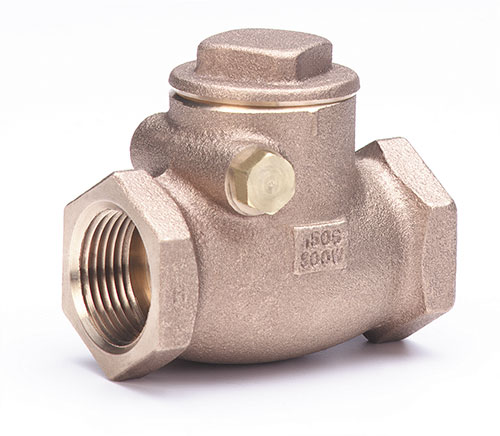

- Bronze Check Valve, 150 SWP – 300 WOG, Threaded Ends
- Conforms to MSS SP-80 , Type 3
Description
| Valve Type | Check Valve |
|---|---|
| Material | Bronze |
| ANSI/Pressure Rating | 150 SWP – 300 WOG |
| End Connection | Threaded |
| Body Style | Horizontal Swing |
| Seat Material | Bronze |
| Disc Material | Bronze |
| Product Size | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
Weights, Dimensions, and Box Quantity
Size
Unit Weight
Unit Dims.
LxWxH
LxWxH
Box Quantity
Box Dims.
LxWxH
LxWxH
1/4"
0.5
2.13 x 0.25 x 1.44
10
9.125 x 3.9375 x 2.0625
3/8"
0.48
2.13 x 0.375 x 1.44
10
9.125 x 3.9375 x 2.0625
1/2"
0.56
2.31 x 0.5 x 1.44
10
9.125 x 3.9375 x 2.0625
3/4"
0.84
2.63 x 0.75 x 1.69
6
9.125 x 3.9375 x 2.0625
1"
1.38
3.25 x 1 x 2
6
6 x 6 x 3.25
1-1/4"
1.82
3.56 x 1.25 x 2.13
4
6 x 6 x 3.25
1-1/2"
2.7
4 x 1.5 x 2.38
4
8.5 x 8.5 x 4.125
2"
4.52
4.75 x 2 x 2.81
2
9 x 6 x 3
