508

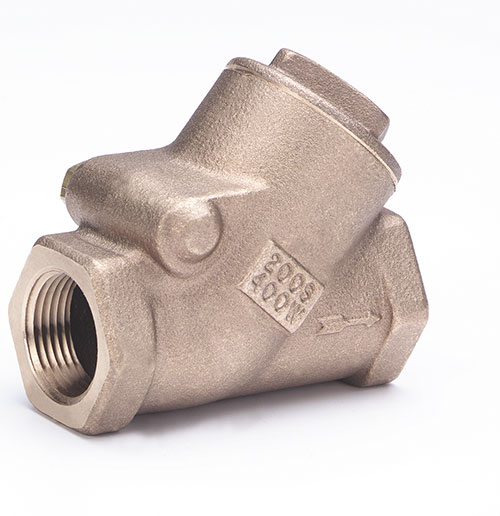

  • Bronze Check Valve, 200 SWP – 400 WOG, Threaded Ends
  • Conforms to MSS SP-80 , Type 3
  • Not Intended for Use in Potable Water
  • Non-Shock

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Valve Type

Check Valve
Material

Bronze
ANSI/Pressure Rating

200 SWP – 400 WOG
End Connection

Threaded
Body Style

Horizontal Swing Y/Pattern
Seat Material

Bronze
Disc Material

Bronze Regrinding
Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"
Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
0.58
2.25 x 0.25 x 1.36
10
9.125 x 3.9375 x 2.0625
3/8"
0.54
2.25 x 0.375 x 1.63
10
9.125 x 3.9375 x 2.0625
1/2"
0.88
2.63 x 0.5 x 1.75
10
6 x 6 x 3.25
3/4"
1.28
3 x 0.75 x 1.94
6
6 x 6 x 3.25
1"
2.14
3.69 x 2.5 x 2.5
6
8.5 x 8.5 x 4.125
1-1/4"
3.16
4.38 x 1.25 x 3
4
8.5 x 8.5 x 4.125
1-1/2"
4.195
4.63 x 1.5 x 3.31
4
9 x 8 x 3
2"
7.46
5.88 x 2 x 4
2
9 x 6 x 3
2 1/2"
10.84
7 x 2.5 x 4.75
1
9.25 x 6.75 x 3.875
3"
15.08
7.88 x 3 x 5
1
10.25 x 7.375 x 4.0625
