502

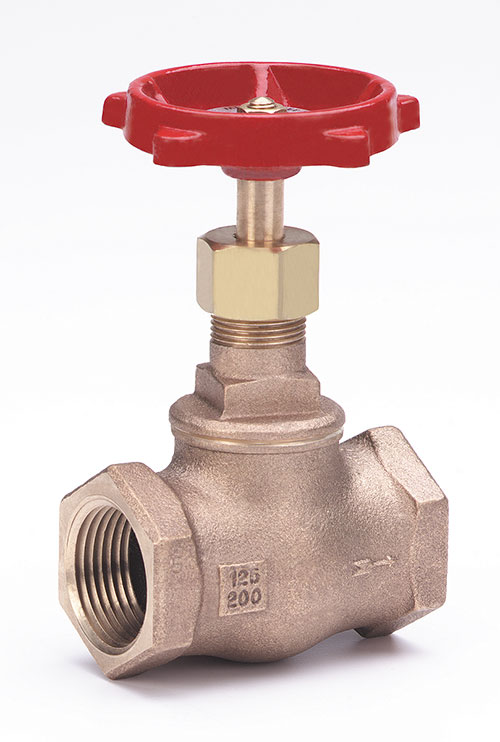

  • Bronze Globe Valve, 125 SWP – 200 WOG, Threaded Ends
  • Conforms to MSS SP-80, Type 1
  • Not Intended for Use in Potable Water
  • Non-Shock

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Material

Bronze
ANSI/Pressure Rating

125 SWP – 200 WOG
End Connection

Threaded
Stem Type

Rising Stem
Body Style

Straight
Bonnet Type

Threaded
Seat Material

Bronze
Disc Material

Bronze
Product Size

1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 3"
Valve Type

Globe Valve
Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
0.44
1.63 x 0.25 x 3.06
10
9.125 x 3.9375 x 2.0625
3/8"
0.54
1.81 x 0.375 x 3.19
10
9.125 x 3.9375 x 2.0625
1/2"
0.74
2.31 x 0.5 x 3.63
10
8.5 x 8.5 x 4.125
3/4"
1.14
2.56 x 0.75 x 3.94
6
7 x 7 x 3
1"
1.7
2.94 x 1 x 4.38
6
9 x 6 x 3
1-1/4"
2.5
3.38 x 1.25 x 5.19
4
10.5 x 6 x 3.25
1-1/2"
3.32
3.69 x 1.5 x 5.75
4
12 x 7 x 3.5
2"
4.84
4.44 x 2 x 6.75
2
10.25 x 7.375 x 4.0625
2 1/2"
10.22
5.75 x 2.5 x 8.63
1
10.25 x 7.375 x 4.0625
3"
21.86
6.88 x 3 x 9.25
1
13.565 x 8.9375 x 4.8125
